Audit Logs
An Audit Log compares versions of the same Template and lists the differences detected.

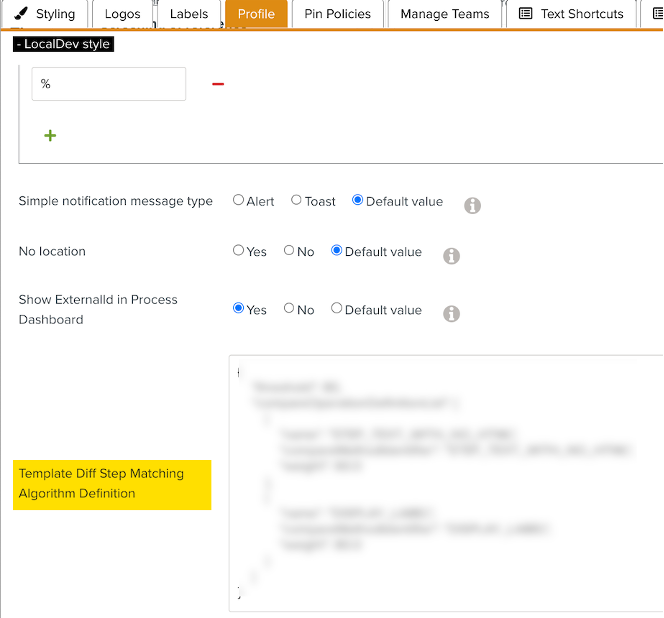

The algorithm for this comparison can be customized using the Template Diff Step Matching Algorithm Definition property in Enterprise Settings.
 |
The Audit Log refers to the compared Template versions as Source and Target versions.
Source Version: The earlier of the two compared versions.
Target Version: The later of the two compared versions.
When comparing versions 5.0 and 6.0, 5.0 is the Source version and 6.0 is the Target version.

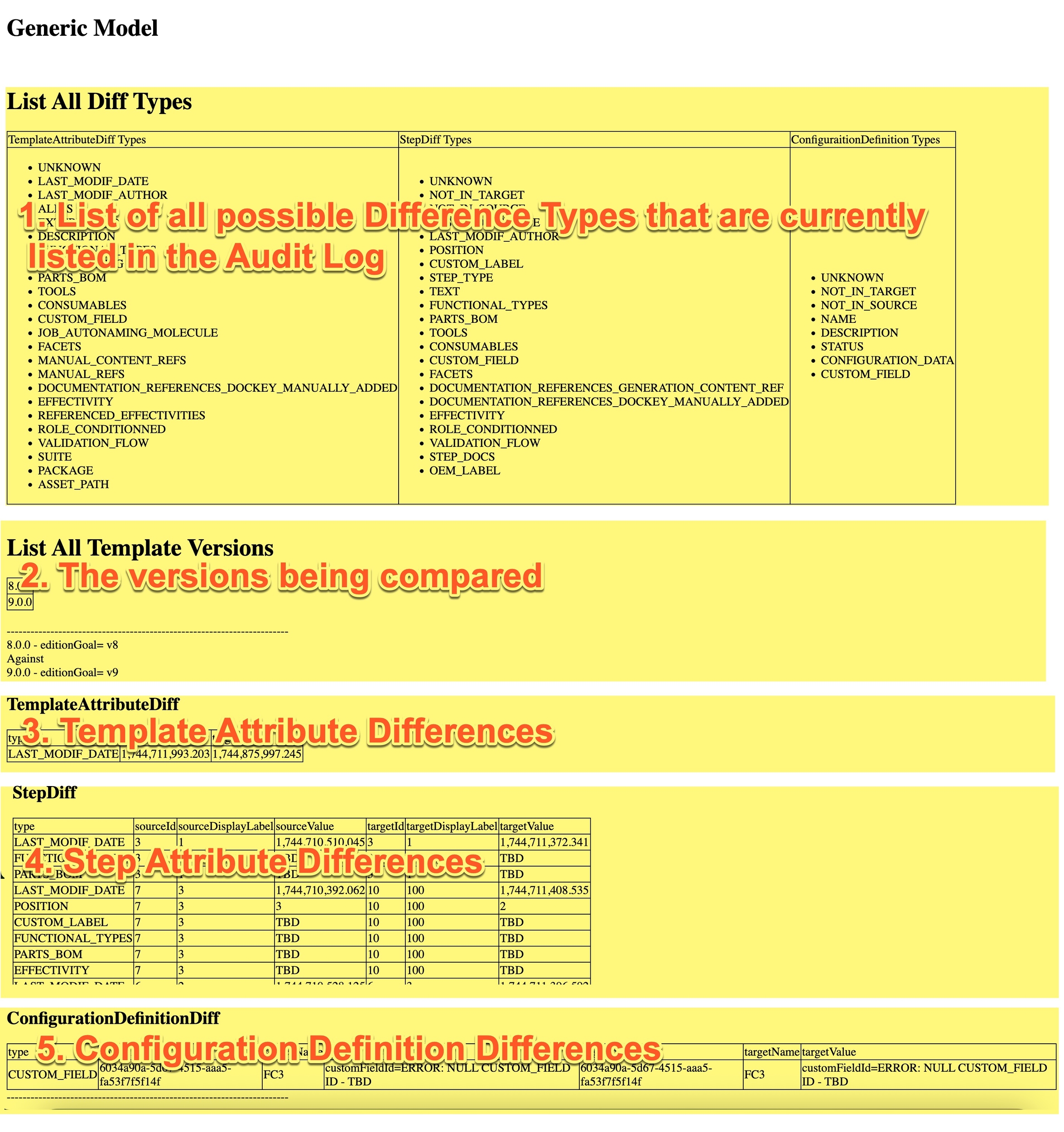

An Audit Log is organized into 5 main sections, as highlighted below.
 |
These sections are described below:
List of Difference Types: The complete list of Difference Types that an Audit Log can contain.

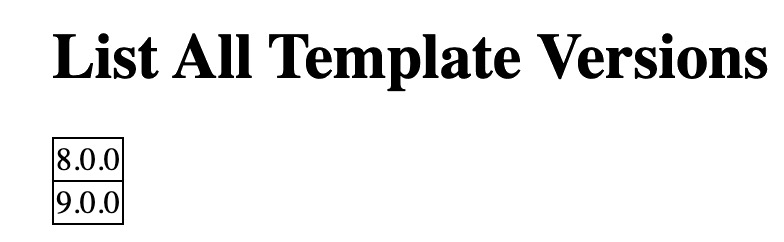

Versions being Compared: Lists the Source and Target versions being compared.
When multiple versions are selected for comparison, the Audit Log lists the differences between subsequent versions. In the below example, versions 6.0, 7.0, 8.0, and 9.0 are chosen. The report presents three sets of differences - the first between 6.0 and 7.0. , and the second between 7.0 and 8.0, and the third between 8.0 and 9.0.

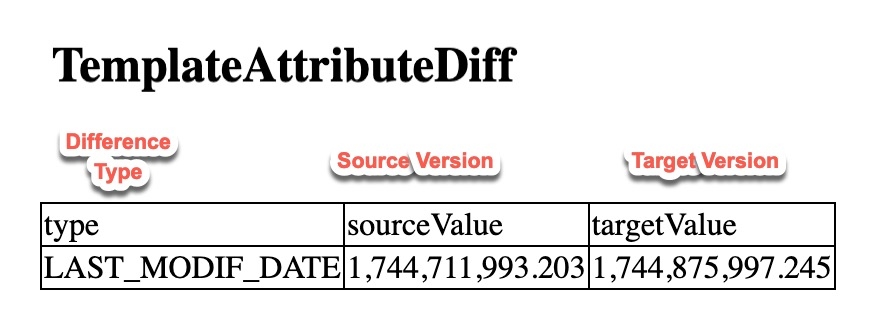

Differences in Template Attributes: Lists the differences in Template Attributes between the two versions.

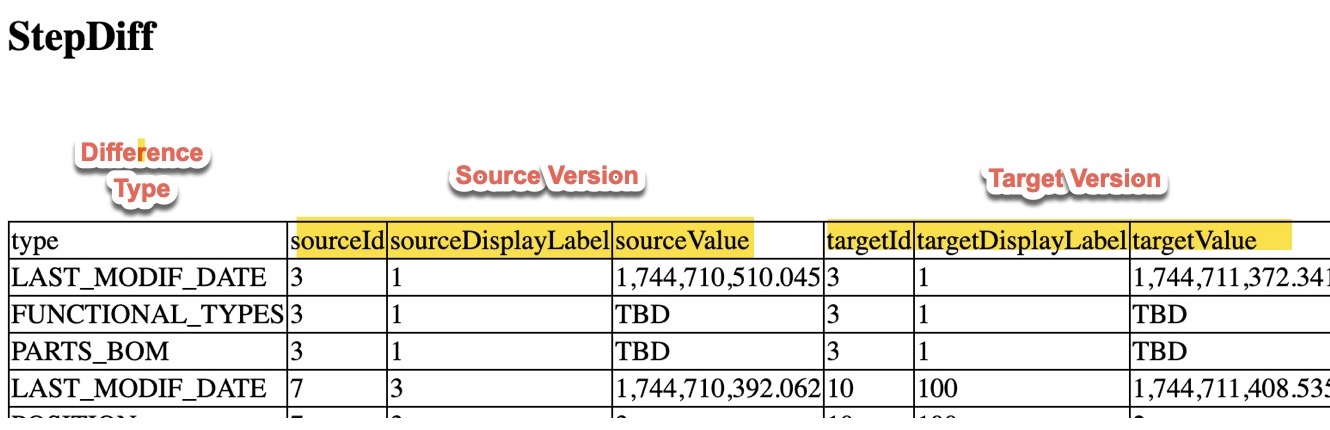

Differences in Step Attributes: Lists the differences in Step Attributes between the two versions.

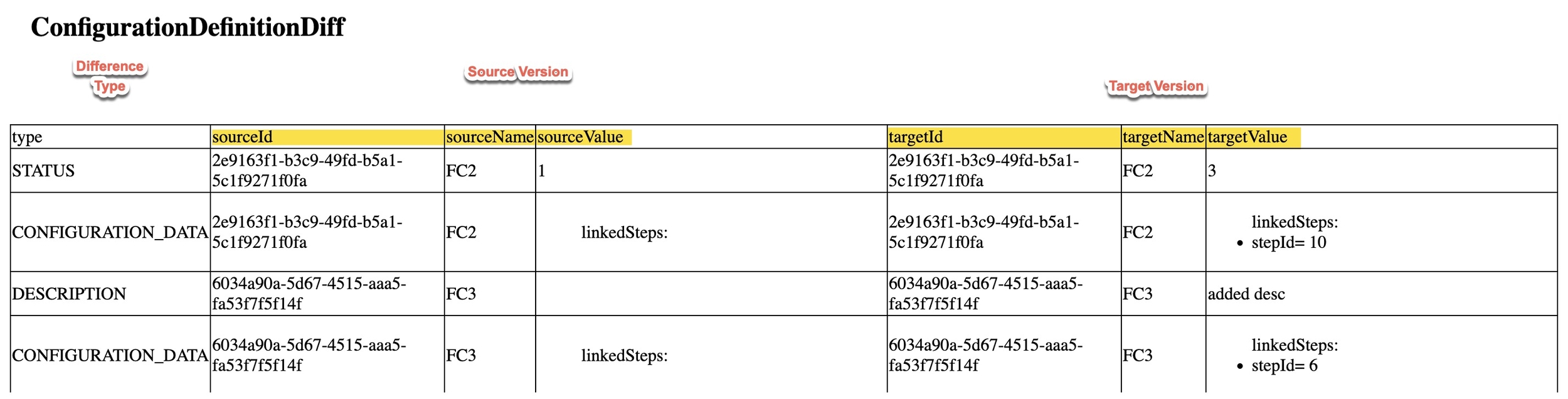

Differences in Configuration Definition: Lists the differences in Configuration Definition between the two versions.
Note
An Audit Log Report Model must be available in the system to generate reports.
An Audit Log lists the differences in three broad categories as follows:
The Audit Log can list the following differences in Template Attributes.
S.no | Template Attribute Difference Types |
|---|---|
1 | Last Template modification date |
2 | The last author who modified the Template |
3 | Alias |
4 | External ID |
5 | Description |
6 | Functional Types |
7 | Parts Configurator |
8 | Parts B |
9 | Parts Configurator - Tools |
10 | Parts Configurator - Consumables |
11 | Custom Field |
12 | Job Autonaming Molecule |
13 | Facets |
14 | MANUAL_CONTENT_REFS |
15 | MANUAL_REFS |
16 | Documentation References and manually added Documentation Keys |
17 | Effectivity |
18 | Referenced Effectivities |
19 | Role Conditioned |
20 | Validation Flow |
21 | Suite |
22 | Package |
23 | Asset Path |
The Audit Log can list the following differences in the Step Attributes.
S.no. | Step Difference Types |
|---|---|
1 | Not present in the target version |
2 | Not present in the source version |
3 | Last modification date |
4 | The last author who modified the Step |
5 | Position |
6 | Custom Label |
7 | Step Type |
8 | Step Title |
9 | Functional Types |
10 | Parts Configurator - Bill of Materials |
11 | Parts Configurator - Tools |
12 | Parts Configurator - Consumables |
13 | Custom Fields |
14 | Facets |
15 | Documentation References generated from the OEM Content |
16 | Documentation References added manually |
17 | Effectivity |
18 | Role-conditioned |
19 | Validation Flow |
20 | Step Docs |
21 | OEM Label |
The Audit Log can list the following differences in Configuration Definitions.
S. no. | Configuration Definition Difference Types |
|---|---|
1 | Not present in the source version |
2 | Not present in the target version |
3 | Name |
4 | Description |
5 | Status |
6 | Configuration Data |
7 | Custom Field |
